ORIGINAL PRODUCTS
Super Polcar
4-Wheel Deluxe Model
Roomy standard body size.
Fully loaded with features designed for the comfort of the user. A model focused on "safety and reliability,"
"convenience," and “comfort.”
- Turning stability
- Climbable height difference
- Turning performance
■JIST T 9208:displaying thenumber of stars in 2016.
Super Silver
Super Blue
Super Red

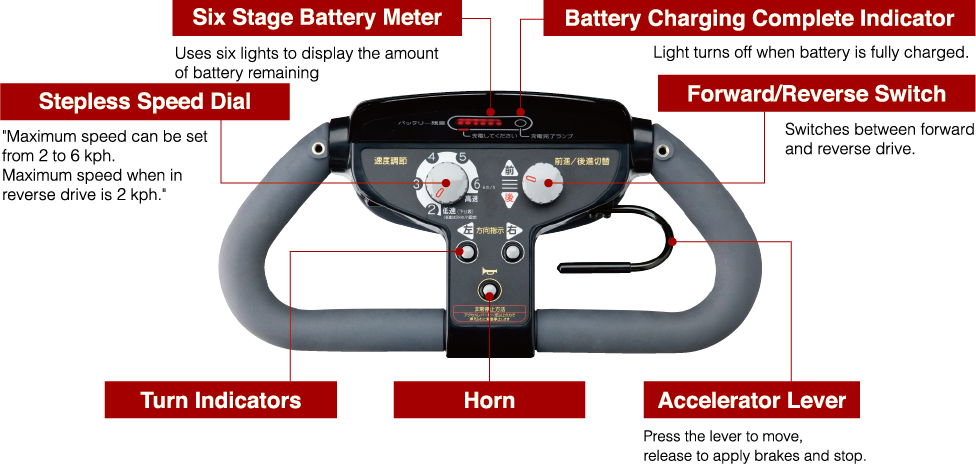

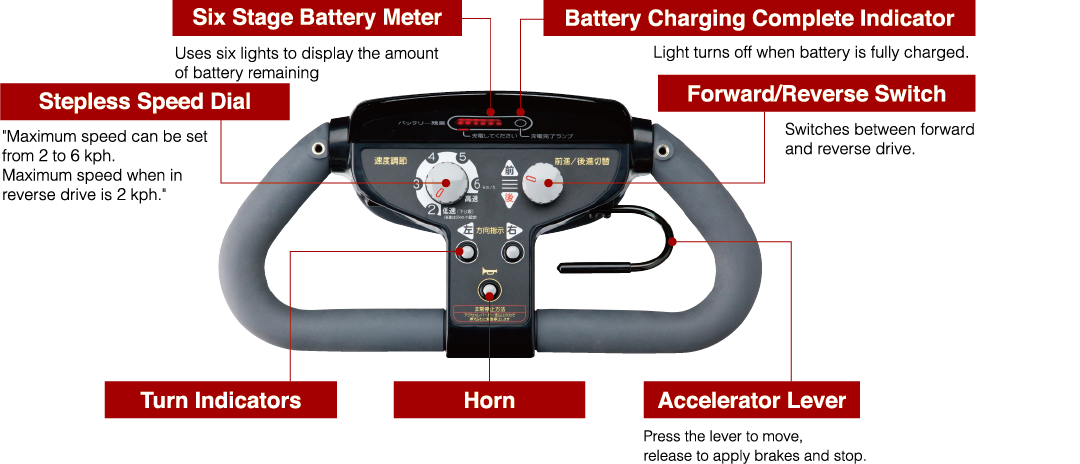

Operation
Easy operation via safe loop handle
Safety

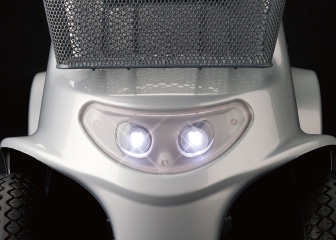

LED Headlights
Uses highly luminescent white LEDs for the headlights, increasing visibility.

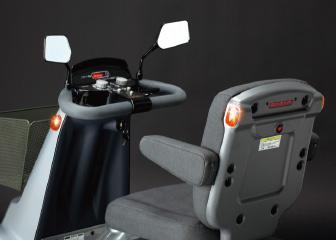

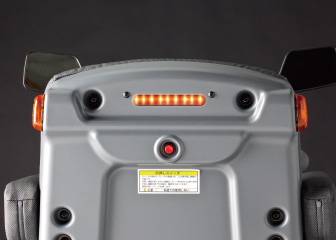

Rear Mounted Light
A constantly flashing light mounted high on the back of the seat increases cart visibility from the rear.
High Mounted Turning Indicators
Turning indicators are mounted high on the front of the body and seat, increasing cart visibility when turning.
Front and Side Reflective Labeling
Reflective labels are placed at the front of the vehicle and
on both sides along the foot rests, increasing visibility.
Rear Reflectors
Placed to increase visibility,
making the cart readily noticeable even from distant cars.
Automatic Hazard Light Functio
Cornering Deceleration Function
Emergency Stop Grip Function
Comfort

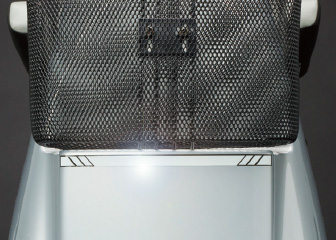

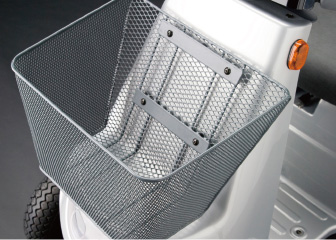

Largest volume
in the industryFront Basket
Large volume (20 L) front basket is now able to carry a wide variety of loads.

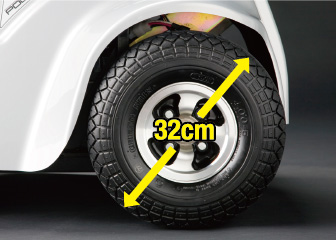

Large Size Tires
32 cm diameter tires. In addition to improving mobility and travel performance, air tires are also available, creating a luxurious feel while driving.

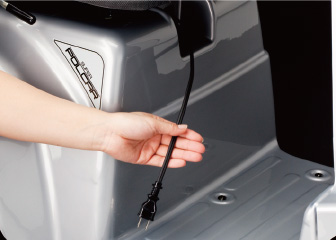

Retractable Charging Cord
Located conveniently below the seat.

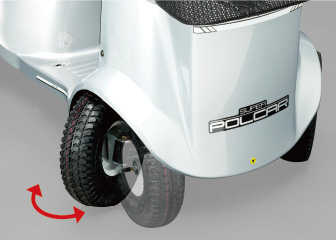

4-Wheel Suspension
4-wheel suspension helps give a gentle ride.
Rotating, Adjustable Sliding Seat
Seat is rotatable to two positions at 45° and 90° to the left and right and can be moved 30 mm forward and back.
600 W Brushless Motor
Uses 600 W high output brushless motor which does not require brush replacement during maintenance.
Automatic Power Off Function
Turning Indicator Automatic Cancelation Function
Super Polcar
4-Wheel Deluxe Model
Smaller than a conventional electric cart.
With a tight turning radius, even narrow roads can be travelled comfortably.
Also small enough to fit in elevators.
A model focused on "simplicity" and "space-saving."
- Turning stability
- Climbable height difference
- Turning performance
■JIST T 9208:displaying thenumber of stars in 2016.
Super Silver
Super Blue
Super Red

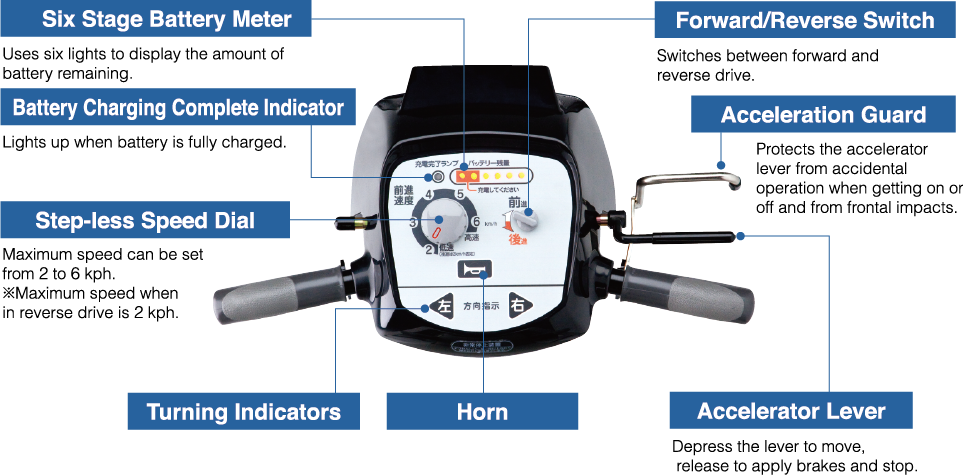

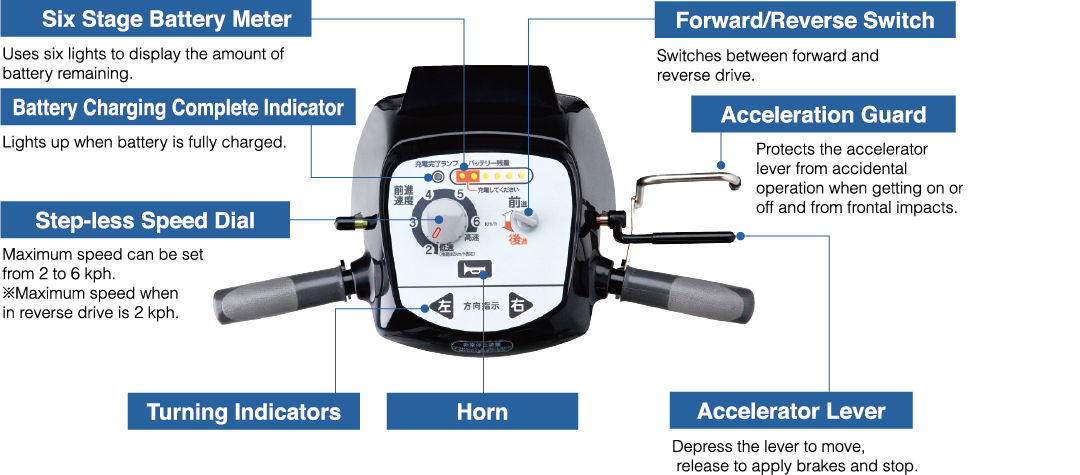

Operation
Easy operation via handlebars equipped with safe acceleration guard
Safety and Reliability

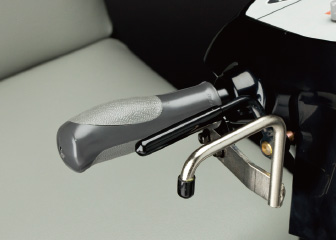

Acceleration Guard
Prevents accidental operation and accident, increasing safety.
Front Reflective Labeling
Reflective labels are placed at the front of the vehicle and on both sides along the foot rests, increasing cart visibility.

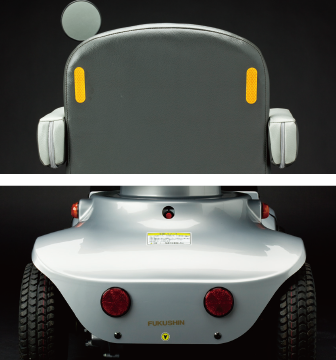

Rear Reflective Labeling,
Rear ReflectorsPlaced to increase cart visibility, making the cart readily noticeable even from distant cars.
No-Puncture Tires
Tires resistant to a wide variety of problems.
Automatic Hazard Light Function
Automatic Hazard Light Function
Emergency Stop Grip Function
Comfort
Tight Turning Radius
Achieves a tight turning radius of 1,250 mm thanks to a compact body just 590 mm in width and 1,110 mm in length.

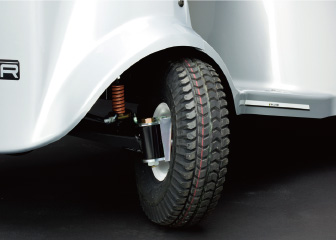

4-Wheel Suspension
4-wheel suspension creates a luxurious feel while driving.

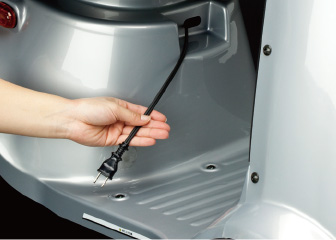

Retractable Charging Cord
Located conveniently below the seat.
Rotating, Adjustable Sliding Seat
Seat rotates 90° to the left and right and can be moved 30 mm forward and back.
Automatic Power Off Function
Turning Indicator Automatic Cancelation Function
Options List

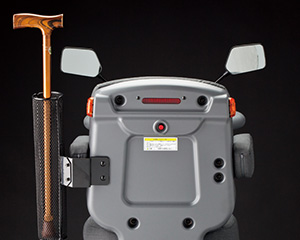

Cane stand

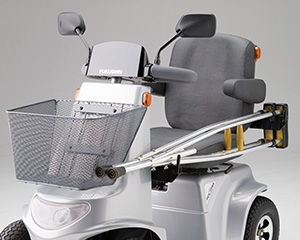

Crutches stand

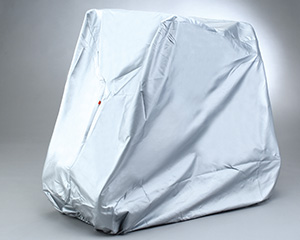

Cart cover

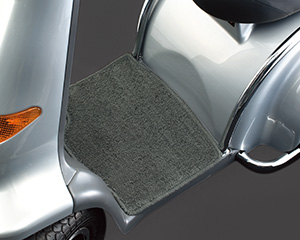

Floor mat

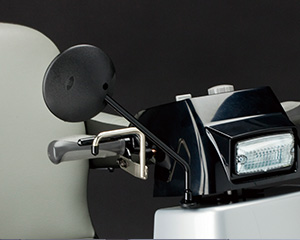

Right rearview mirror

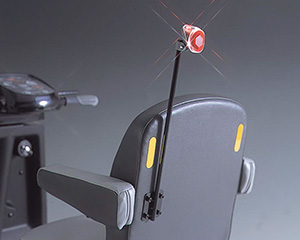

Taillight
| Specification Sheet | SPX-4500 | SPX-4300N |
|---|---|---|
| Cane stand | ¥8,000（tax not included） ¥8,640（consumption tax included） | |
| Crutches stand | ¥9,000（tax not included） ¥9,720（consumption tax included） | |
| Cart cover | ¥6,000（tax not included） ¥6,480（consumption tax included） | |
| Floor mat | ¥2,500（tax not included） ¥2,700（consumption tax included） | |
| Right rearview mirror | Standard | ¥1,600（tax not included） ¥1,728（consumption tax included） |
| Taillight | ¥5,000（tax not included） ¥5,400（consumption tax included） |
|
■Specification Sheet
| Model | SPX-4500 | SPX-4300N | |
|---|---|---|---|
| Product Category | Handle Type Electric Scooter ( Type I) | Handle Type Electric Scooter ( Type I) | |
| National Public Safety Commission approval no. | Ko K 11-2 | Ko K 10-15 | |
| Dimensions | Length | 1,190mm | 1,110mm |
| Width | 665mm | 590 mm (excluding mirrors), 635 mm (including mirrors) | |
| Width | 1,070mm | 1,025mm | |
| Weight (including battery) | 106kg(with air tires) 111kg(with no-puncture tires) |
66 kg (with air tires) 69 kg (with no-puncture tires) |
|
| Motor (30 min. rated output) | DC 24 V, 600 W × 1 | DC 24 V, 600 W × 1 | |
| Battery | Model/number used | HC38-12 × 2 | HC24-12 × 2 |
| Voltage | 12V | 12V | |
| 5 hour rated capacity | 32Ah | 20Ah | |
| Seat dimensions | eat width 430 mm/seat depth 410 mm/ seat back height 420 mm |
Seat width 400 mm/seat depth 350 mm/ seat back height 396 mm |
|
| Charger | Equipped with internal microcomputer controlled fast charger for use with residential AC 100 V (charges new battery to 100% in nine hours) |
Equipped with internal microcomputer controlled fast charger or use with residential AC 100 V (charges new battery to 100% in six hours) |
|
| Front wheels | 4.00-5-4PR × 2 | 3.00-4-4PR × 2 | |
| Rear wheels | 4.00-5-4PR × 2 | 3.00-4-4PR × 2 | |
| Drive system | Rear 2-wheel drive (with differential) | Rear 2-wheel drive (with differential) | |
| Braking system | Motor dynamic braking/electromagnetic brake | Motor dynamic braking/electromagnetic brake | |
| Steering system | Front-wheel steering via loop handle | Front-wheel steering via handlebars | |
| Control system | Microcomputer step-less speed control via accelerator lever |
Microcomputer step-less speed control via accelerator lever |
|
| Maximum speed | Forward | 6.0km/h | 6.0km/h |
| Reverse | 2.0km/h | 2.0km/h | |
| Practical climbing angle | 10° | 10° | |
| Consecutive running distance (maximum speed/level road) |
29km | 25km | |
| Minimum turning radius | 1,500mm | 1,250mm | |
| Maximum climable height difference | 80 mm o r less (driving straight) | 80 mm o r less (driving straight) | |
| Maximum crossable gap | 150 mm or less | 150 mm or less | |
| Maximum user weight (including loads) | 100kg | 100kg | |
| MSRP (tax not included) | ¥368,000 (with air tires) ¥378,000 (with no-puncture tires) |
¥293,000 | |
- The Polcar model series is approved by the National Public Safety Commission.
- Consecutive running distance is the distance travelled under the conditions below with the battery charged to 100%.
22°C external temperature/new battery/level road/charged to 100% with internal charger/100 kg passenger (including loads)
The Polcar model series has acquired the Japanese Industrial Standards
JIS T 9208:2009 certification for handlebar-type electric scooters.
- Turning stability
- Climbable height difference
- Turning performance
■JIST T 9208: Stars (★) differ depending on the
models displaying the number of stars in 2016.
